Butterfly Valves

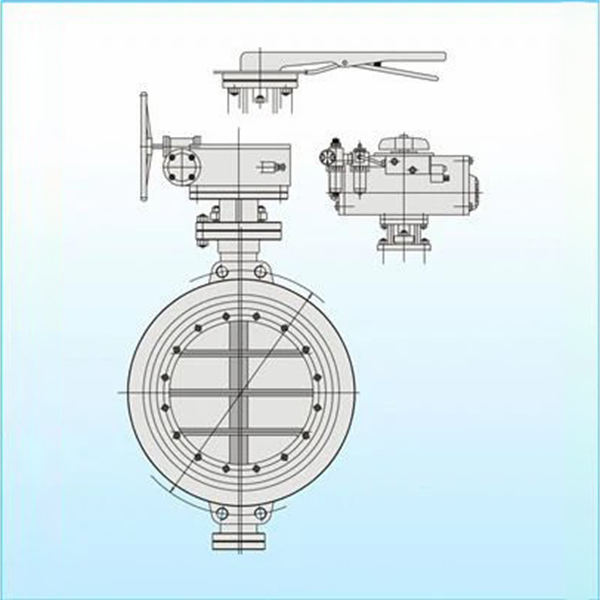

What Is a Triple Eccentric Butterfly Valve?

A triple eccentric butterfly valve, also called a triple offset butterfly valve, uses a three-offset structural design to minimise friction between the valve seat and sealing surface during operation.

The three offsets include:

• Shaft offset from the pipeline centreline
• Shaft offset from the valve seat centreline
• Conical sealing surface offset

This design allows the valve disc to disengage from the seat during opening and only contact the seat during final closure.

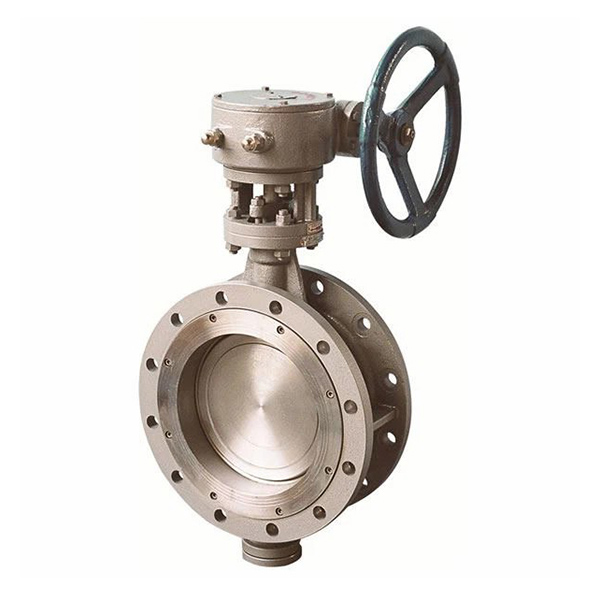

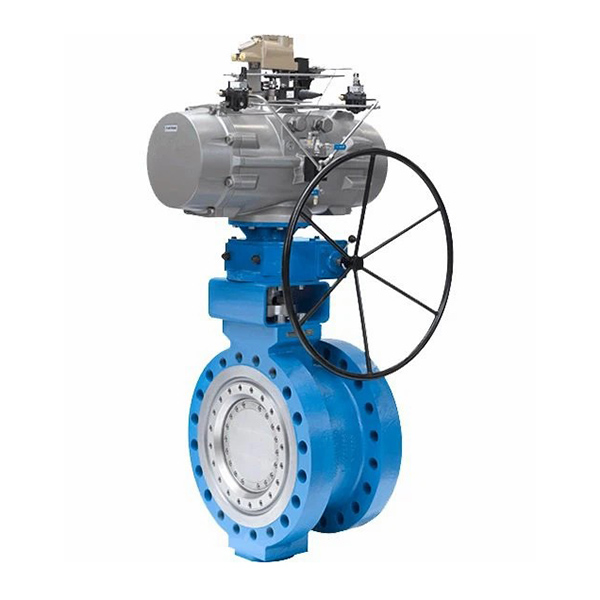

High performance double eccentric butterfly valves are widely used in industrial pipeline systems requiring reliable sealing, low operating torque, and long service life.

Compared with concentric butterfly valves, double eccentric butterfly valves provide:

• Reduced seat wear
• Better sealing performance
• Lower friction during operation
• Longer operational lifespan
• Improved pressure resistance

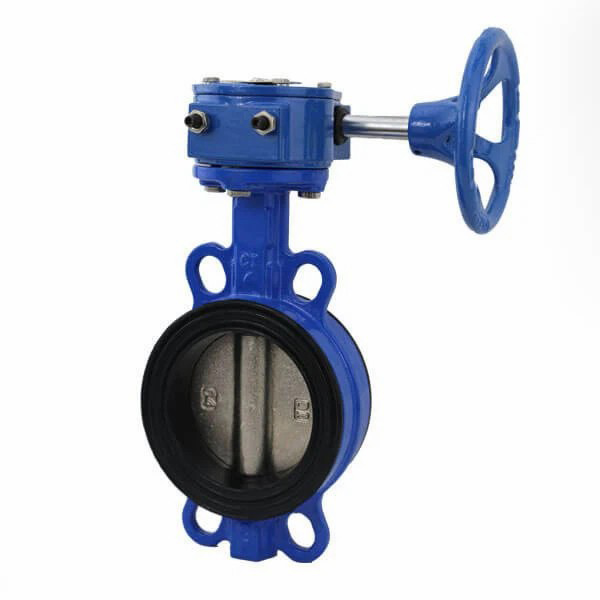

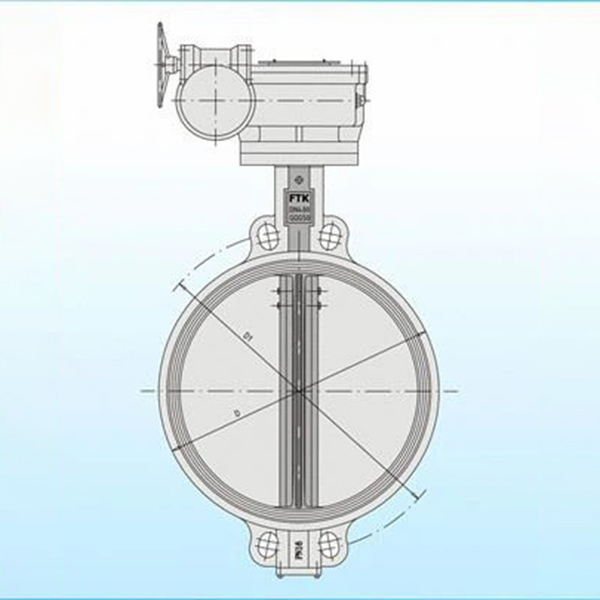

Resilient seated concentric butterfly valves are widely used in low and medium pressure pipeline systems because of their compact design, reliable sealing performance, and cost-effective operation.

Compared with many traditional valve types, concentric butterfly valves provide:

• Lightweight structure
• Fast opening and closing
• Low installation space requirements
• Simple maintenance
• Reliable shut-off performance
