Cast Steel Globe Valves

General Description:

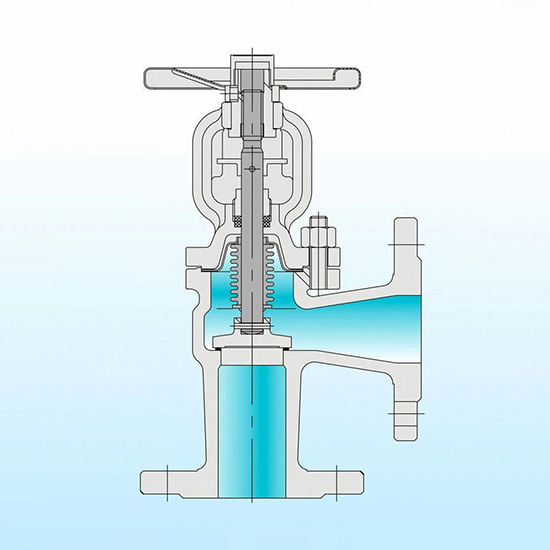

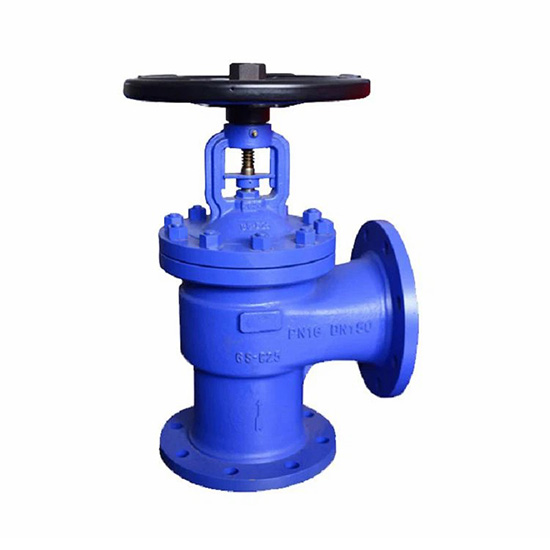

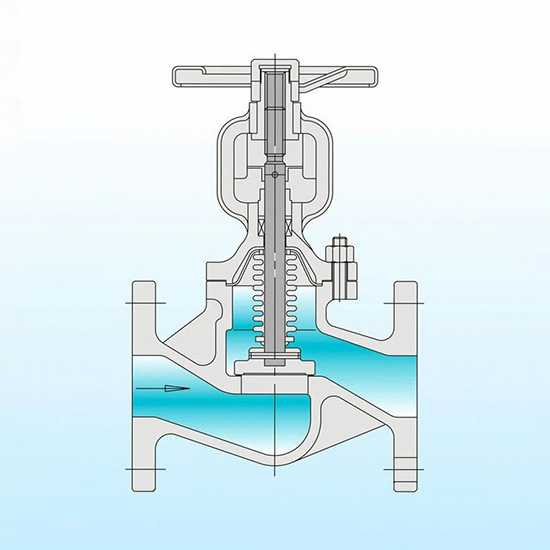

The bellows sealed globe valve uses a closed bellows that can be stretched and compressed to replace the packing, which can effectively prevent external leakage caused by packing loss. It is generally used for the transportation of highly permeable media, such as valves on hydrogen systems, as long as the bellows is not damaged, there will be no leakage.

Design Standards:
Design and Manufacture: EN 13709
Face to Face Dimension: EN558-1 GR.1
Flange Connection Dimension: EN1092-1
BW Connection Dimension: EN 12627
Test and Inspection: EN12266
Other: NACE MR01-75, Low Emission Test

General Description:

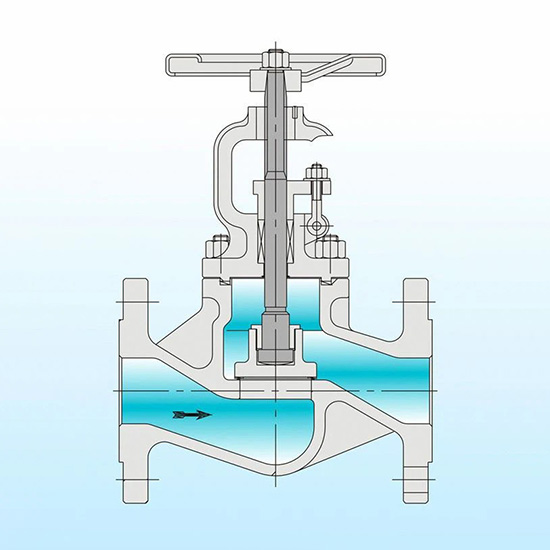

We can provide a choice of different face to face dimensions for DIN/EN cast steel globe valve. It has good sealing performance and longer service life, which is suitable for industry, power system, exhaust gas purification device, hot water, heat transfer oil application, shipbuilding industry, etc.

Design Standard:
Basic Design: EN 13709
Face – Face Dimension: EN 558-1 GR.1 / 2, DIN 3202-F1 / F2, ISO 5752
End – End Dimension: EN 12627
Flange Dimension: EN 1092-1
Test: EN 12266, ISO 5208

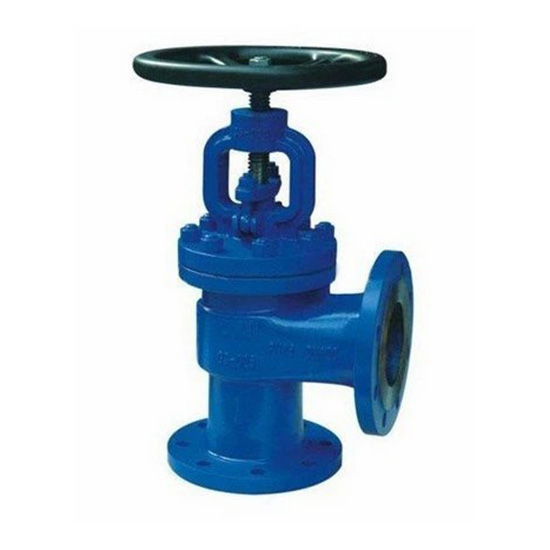

General Description:
Such kind of valves is one of our main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:
Basic Design: EN 13709
Face-Face Dimension: EN 558-1 GR.8, DIN 3202-F32, ISO 5752
Flange Dimension: EN 1092-1, EN12627
Test: EN 12266, ISO 5208

General Description:

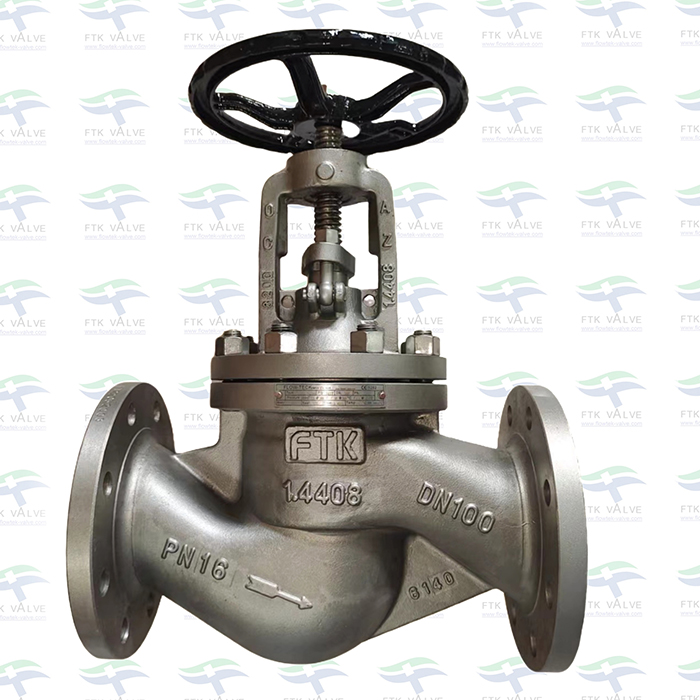

The use of bellows sealed globe valve can reduce the fluid loss and energy loss, to improve the safety of plant equipment. Its long service life can reduce maintenance and operating costs.

Design Standard:
Design and Manufacture: EN 13709
Face to Face Dimension: EN558
Flange Connection Dimension: EN1092
BW Connection Dimension: EN 12627
Test and Inspection; EN12266
Other: NACE MR01-75, Low Emission Test

General Description:

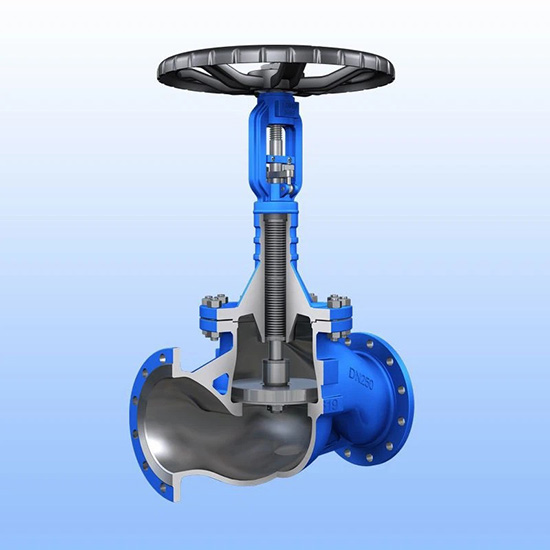

The bellows sealed globe valve is usually used in special conditions. The opening or closing stroke of the valve stem is relatively short, and it has a very reliable cut-off function. The sturdy and durable bellows sealed design ensures zero leakage of the valve stem and provides maintenance-free conditions.

Design Standard:
Design and Manufacture:  BS 1873
Face to Face Dimension:   ASME B16.10
Flange Connection Dimension: ASME B16.5, ASME B16.47/MSS SP-44
BW Connection Dimension:  ASME B16.25
Test and Inspection:  API 598, MSS SP-61
Other: NACE MR01-75, Low Emission Test

General Description:

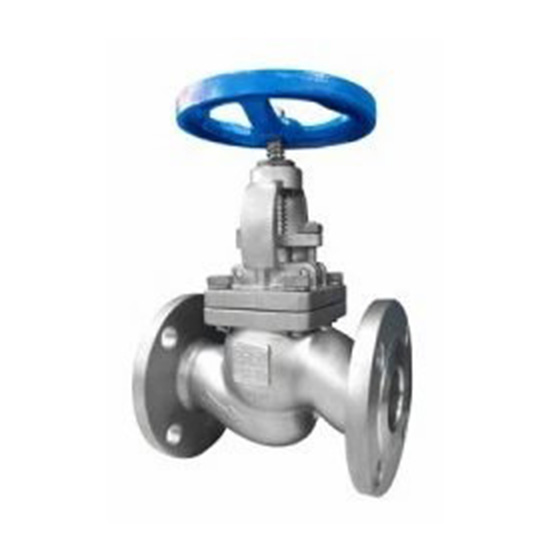

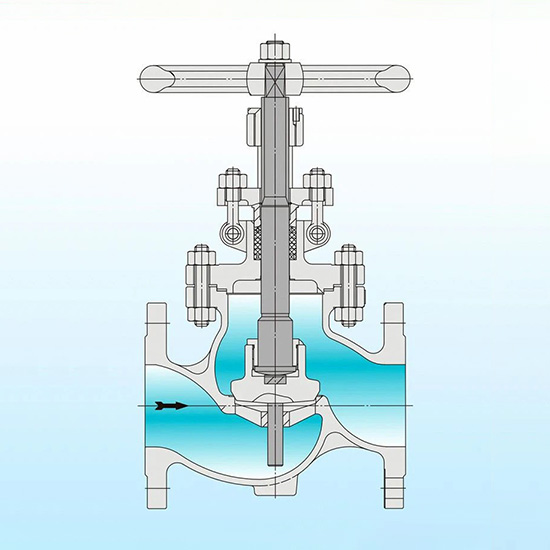

API 603 stainless steel, cast steel globe valve is widely used in Chemical and food plant. Special design include extended bonnet for cryogenic service. The wall thickness is designed as per ANSI B16.34, cost effective and light weighted compare with conventional API 600 valve.

Design Standard:
Basic Design: API 603, ASME B16.34
Face to Face (End to End): ANSI B16.10
End Connection: ANSI B16.5
Test & Inspection: API 598

General Description:

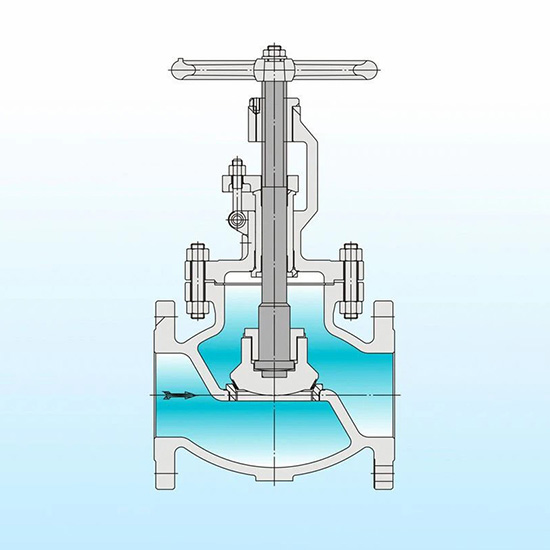

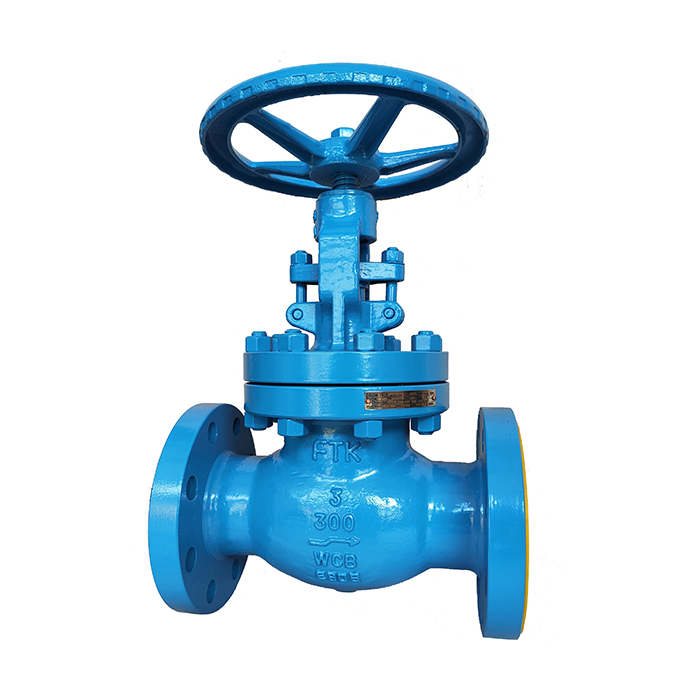

BS1873 cast steel globe valve is one of our main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:
Basic Design: BS 1873, ASME B16.34
Face – Face Dimension: ASME B 16.10
End – End Dimension: ASME B 16.25
Flange Dimension: ASME B 16.5, ASME B16.47
