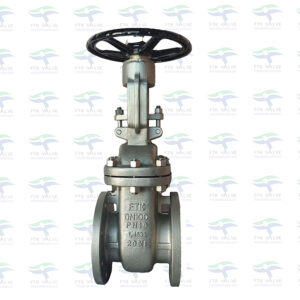

General Description:

The stem of the rising stem gate valve is outside the valve body, which can intuitively judge the position of opening and closing the gate/wedge, which is also conducive to maintenance and lubrication.

Design Standard:

Basic Design: EN/DIN 1984, DIN3352
Face to Face (End to End): EN 558-1 Gr.14 (DIN3202 F4)
End Connection: EN 1092-1
Test & Inspection: EN12266

Products Range:

Size: DN50 mm ~ DN1200 mm
Rating: PN10 / PN16
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Monel, Bronze
(WCB, 1.0619, CF8, 1.4308, CF8M, 1.4408, WC6, 1.7335, WC9, C5, C12, 4A, 5A, LCB, LCC, CF3A, Inconel 625, Incolloy 825, Monel 400, C95800, etc)
Trim: Per API 600 or customer’s requirements
Operation: Handwheel, Gear, Motorized, Pneumatic

Design Feature:

Flat body short pattern
Flexible wedge
Optional Impact hand wheel
Rising stem
Bolted Bonnet or Pressure Seal Bonnet

Application:

Oil & Gas Industry
Refinery
Petrochemical
Geothermal plant
Power plant
General Industry
