General Description:

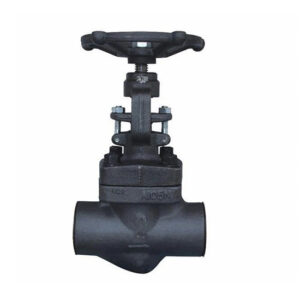

Forged steel globe valve is designed fully comply with API 602 / BS 5352. FLOWTEK offer standard bolted bonnet joint with optional welded bonnet. The bellow sealed type is also available.

Design Standard:
Basic Design: API 602, BS 5352
Face to Face (End to End): ASME B16.10
End Connection: ASME B16.5, ASME B16.25, ASME B1.20.1
Test & Inspection: API 598

Products Range:
Type: Globe
Size: 1/2″~ 2″
Rating : ANSI 800lb,150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb
Body Materials: A105, LF2, F11, F22, F5, F304, F316, F91, F51, F53, Inconel, etc.
End connection: SW

Design Feature:
Plug disc with optional needle disc
Bolted or welded bonnet
Full port or reduce port
Optional bellow seal

Application:
Petrochemical
General Industry
Steam line
Geothermal plant
