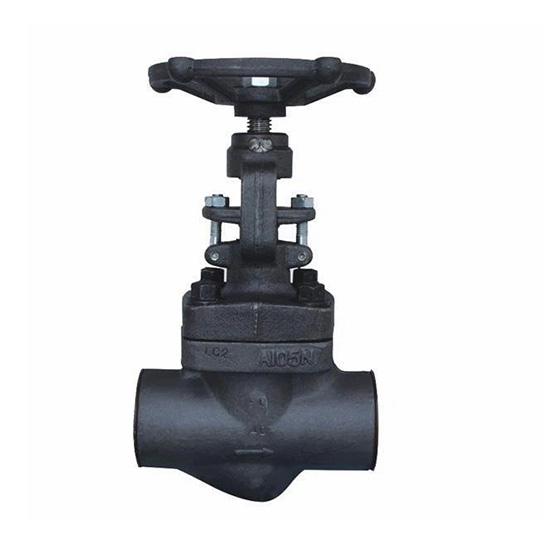

General Description:
Forged steel globe valve is designed fully comply with API 602 / BS 5352. FLOWTEK offer standard bolted bonnet joint with optional welded bonnet. The bellow sealed type is also available.

Design Standard:
Basic Design: API 602, BS 5352
Face to Face (End to End): ASME B16.10
End Connection: ASME B16.5, ASME B16.25, ASME B1.20.1
Test & Inspection: API 598

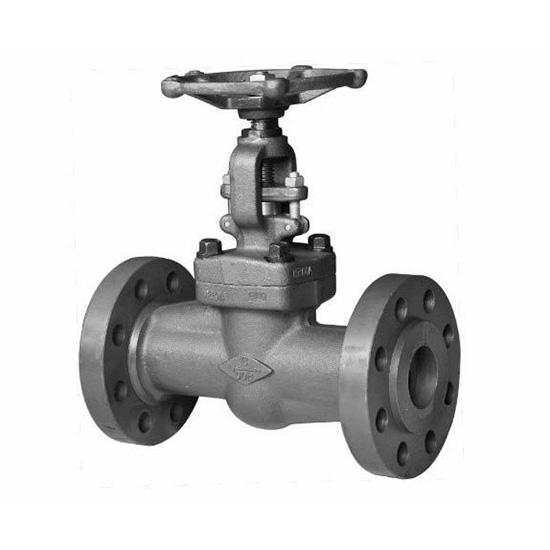

General Description:
Forged steel flanged globe valve is designed fully comply with API 602 / BS 5352. FLOWTEK offer both welded flanges and integral flanges type.

Design Standard:
Basic Design: API 602, BS 5352
Face to Face (End to End): ASME B16.10
End Connection: ASME B16.5
Test & Inspection: API 598

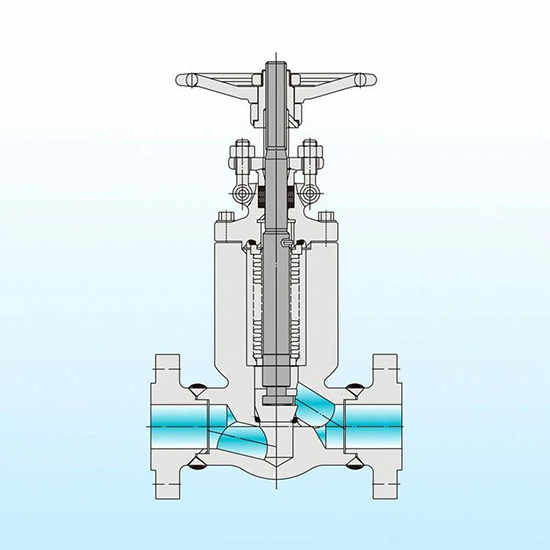

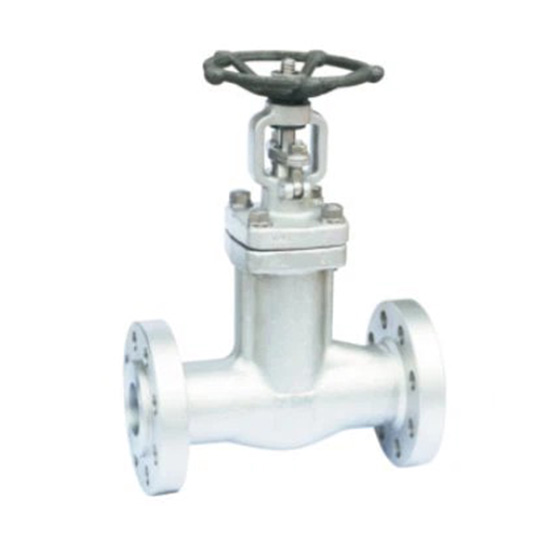

General Description:
FLOWTEK can provide bellows with many material choices to meet the requirements of site conditions .

Design Standard:
Design and Manufacture: API 602, BS 5352,
Face to Face Dimension: ASME B16.10, EN558 (Threaded Ends and Socket Welded ends as per manufacture’s specification)
Flange Connection Dimension: ASME B16.5, EN1092
BW Connection Dimension: ASME B16.25
Threaded Ends Dimension: ASME B1.20.1
Socket Welded Ends Dimension: ASME B16.11
Test & Inspection: API 598, EN12266
Other: NACE MR01-75, Low Emission Test
